TMI 73-18 Pulp Disintegrator
Disintegration of a pulp sample is the mechanical treatment, in water, of interlaced fibers to separate them from one another.
Description
Available in either 61 cm (24 inch) or 91.4 cm (36 inch) sizes, the Messmer Buchel Speed Dryers permit rapid drying of hand-sheets after pressing, prior to evaluation. The uniformly distributed heat from the drying surface reduces the moisture content of paper samples. The drying surface is highly polished to facilitate hand-sheet removal.
Features & Benefits
Features
- Digital counter
- Includes lightweight anodized aluminum container
- 316 Stainless cover
- Integrated sensors for container proximity and cover lock enhance operator safety
Options
Hot disintegrator-heated stock container maintains temperature of preheated pulp samples
Technical Specifications
Standards
Meets TAPPI T-205, CPPA C.4 and ISO 5263
Instrument Size
Depth: 521 mm (20.5 in.)
Height: 425 mm (16.75 in.)
Width: 305 mm (12 in.)
Weight: 40 kg (87 lb)
Connections
Electrical: Specify voltage requirements when ordering
Applications
Applications
Pulp
Resources
Related products
-
View Product

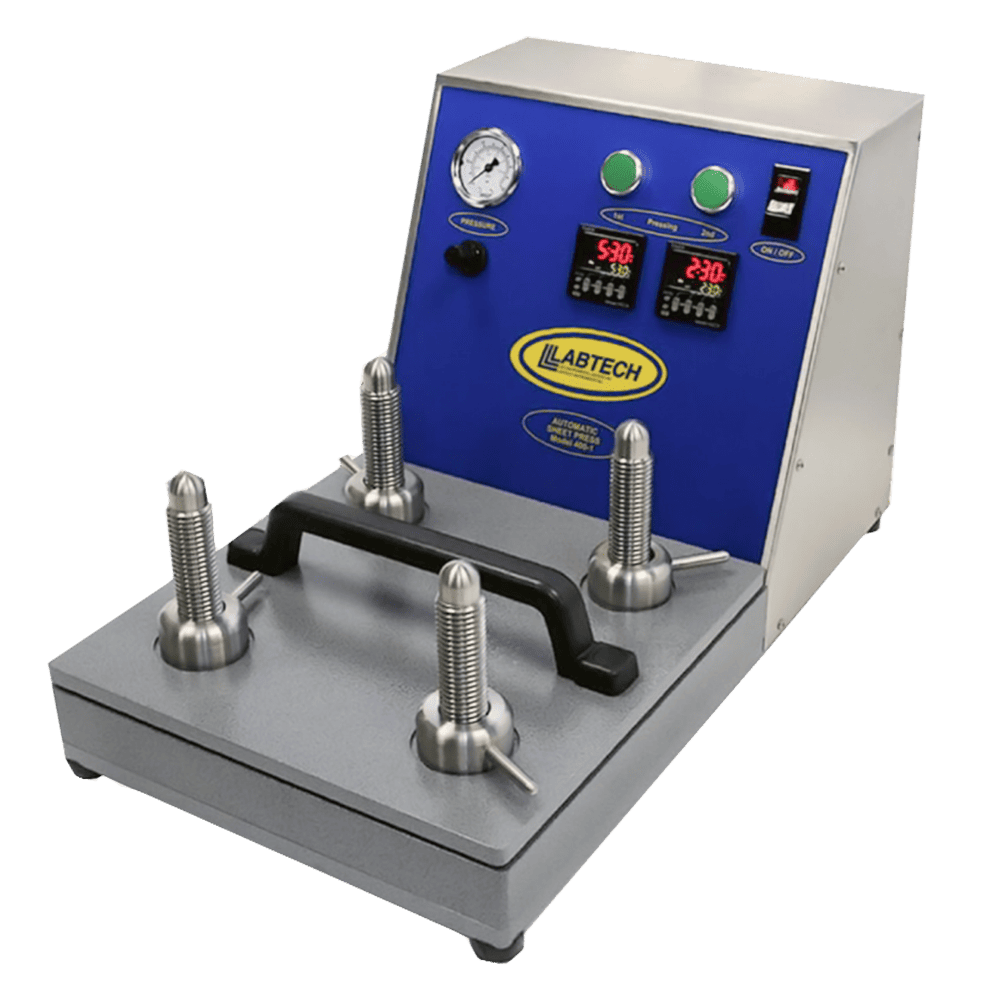

TMI 73-50 Sheet Press
The TAPPI Standard Sheet Press is designed for ease of operation and accuracy in forming hand sheets in accordance with TAPPI standards.
-
View Product

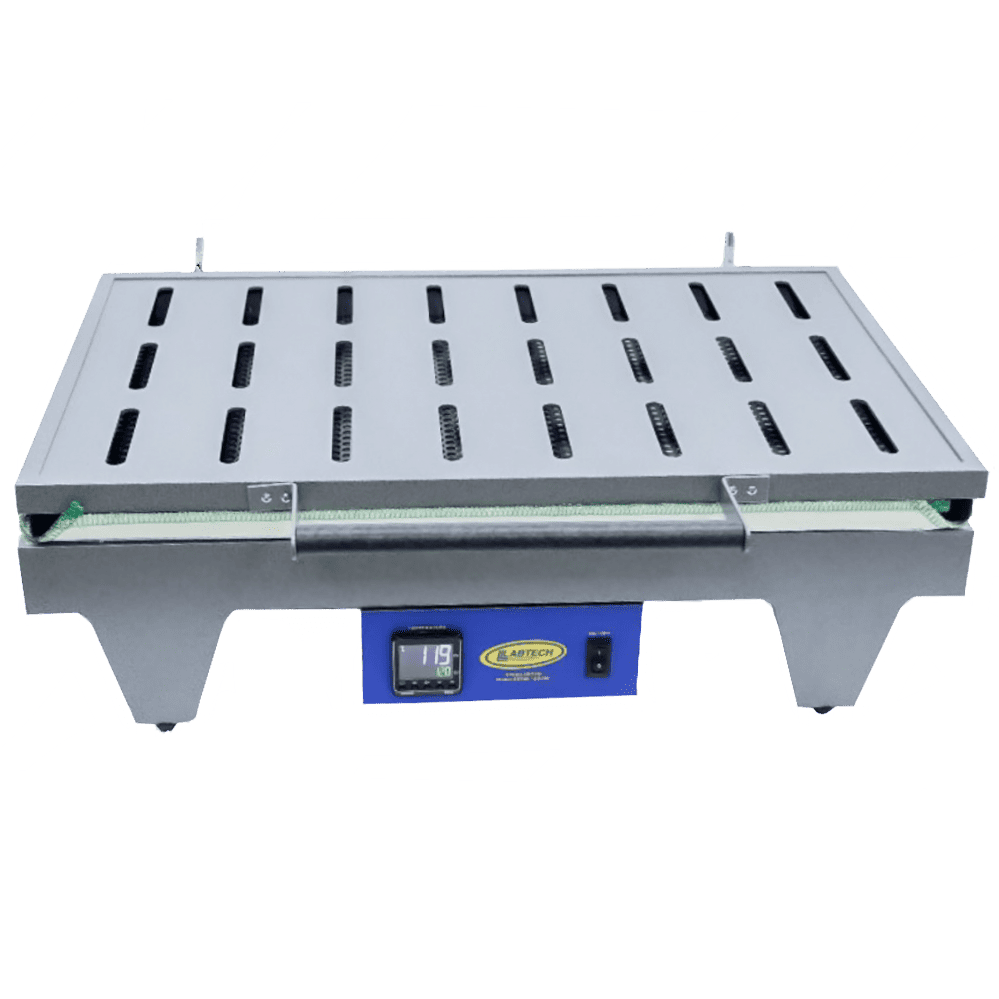

TMI 73-17 Speed Dryer
For rapid drying of hand sheets after pressing, prior to evaluation.
