TMI 71-01 Chip Class
The 71-01 Chip Class™ is designed as a trouble-free chip classification system. A minimum of moving parts and carefully selected components gives you the most reliable chip classification system available on the market today.
Description
The 71-01 Chip Class is designed as a trouble-free chip classification system. A minimum of moving parts and carefully selected components gives you the most reliable chip classification system available on the market today.
The Chip Class wood chip classifier measures the size distribution and relative quantity of chip size fractions for mechanical and chemical wood chips.
Special trays are designed for the chip classifiers to meet most hole and bar dimension requirements. This allows for chip classification of a variety of other materials requiring size classification.
Features & Benefits
Features & Benefits:
- Lightweight, interchangeable chip classification trays for quick measurements
- Strong, compact base and low-maintenance shaker platform
- Large, easy-to-read labels
- Patented tray interlock system
- Fast tray alignment guide
- Convenient chip classifier controls
Technical Specifications
Standards
TAPPI UM 21
Specifications
- Sample size: 4 litres
- Test time: 10 minutes
- Trays: Hartley/Hatton Series Trays: 45 mm Round hole, 10 mm Bar, 8 mm Bar, 7 mm Round hole, 3 mm Round hole
- Optional trays available in most round hole sizes and bar screens
- U.S. patent no. 4,848,607
Crated Size
| Depth: | 686 mm (27 in.) | ||
| Height: | 991 mm (39 in.) | ||
| Width: | 1295 mm (51 in.) | ||
| Weight: | 263 kg (580 lb) |
Connections
Electrical: Specify voltage requirements when ordering
Resources
Related products
-
View Product

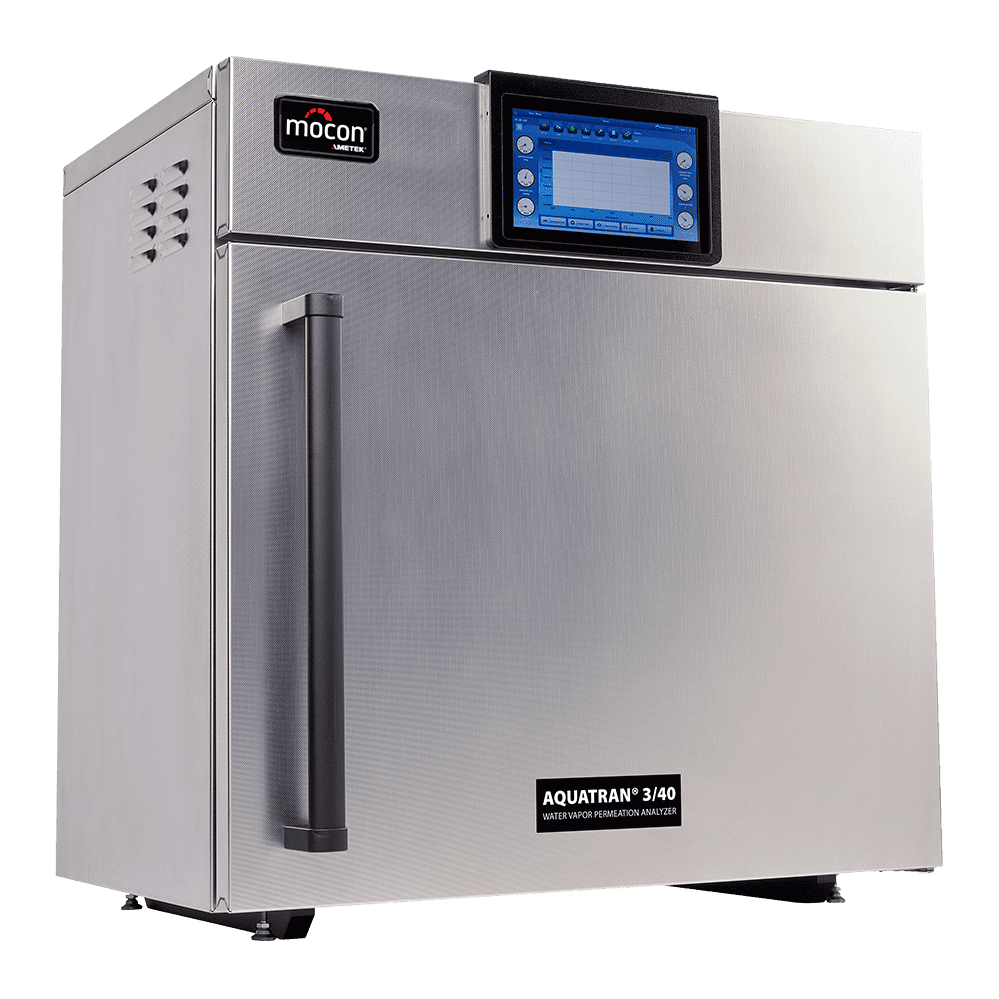

AQUATRAN ® 3/40
The AQUATRAN 3/40 is the next evolution in whole package testing for Water Vapor Transmission Rate (WVTR)
This advanced analyzer integrates MOCON’s proven WVTR analyzer system with a precision environmental chamber to elevate package testing to the next level in accuracy, repeatability and ease of use. With special functions designed for package testing they greatly reduce overall test time while the new package testing cartridge designs offer simple sample preparation and improved repeatability of test results. They feature 4 independent cells with changeable test cartridges that allow a wide variety of package sizes and types to be easily and accurately tested, many without the use of epoxy.
-
View Product

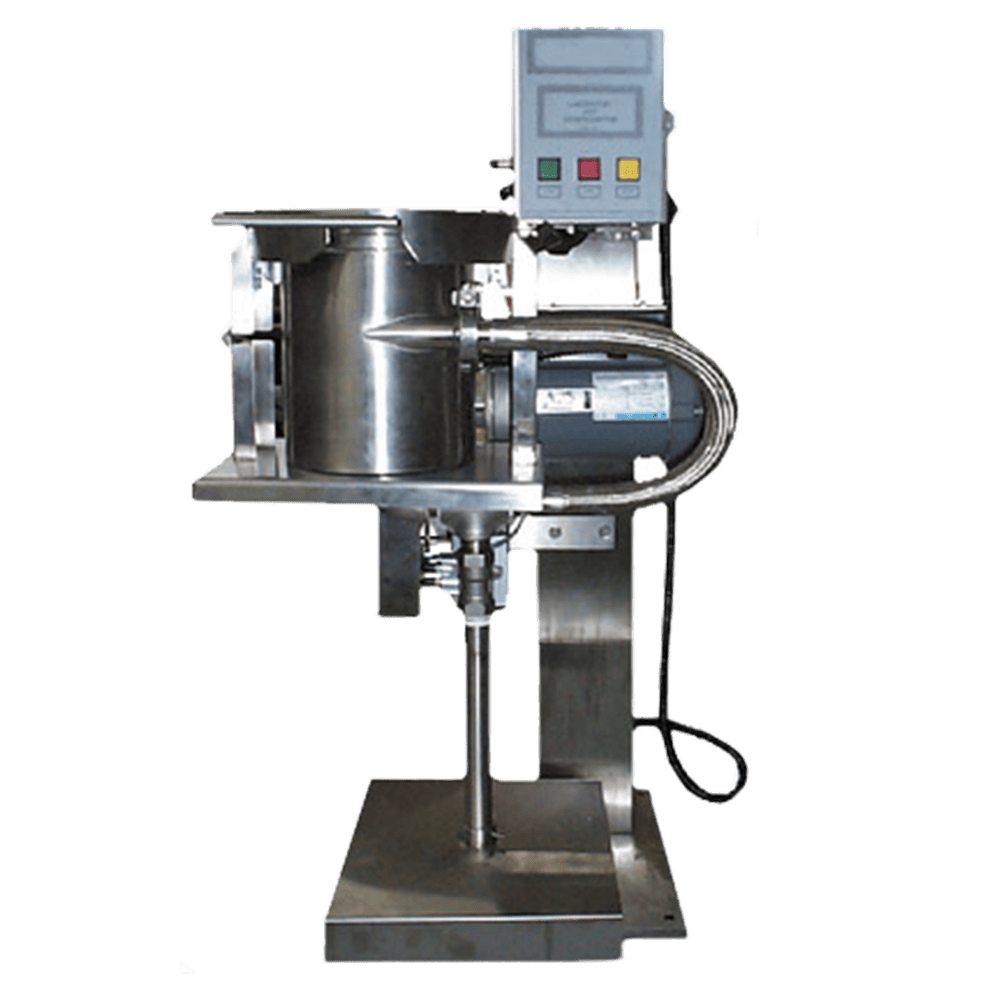

TMI 73-19 Hot Disintegrator
Hot disintegration, pulp shows complete development of strength properties without further treatment. Tests to TAPPI T262
-
View Product
LCT Laboratory Carton Tester
The LCT combines three tests in one instrument – crease strength, box forming force and spring-back with optional friction testing for the ultimate carton analysis and quality assurance.
-
View Product

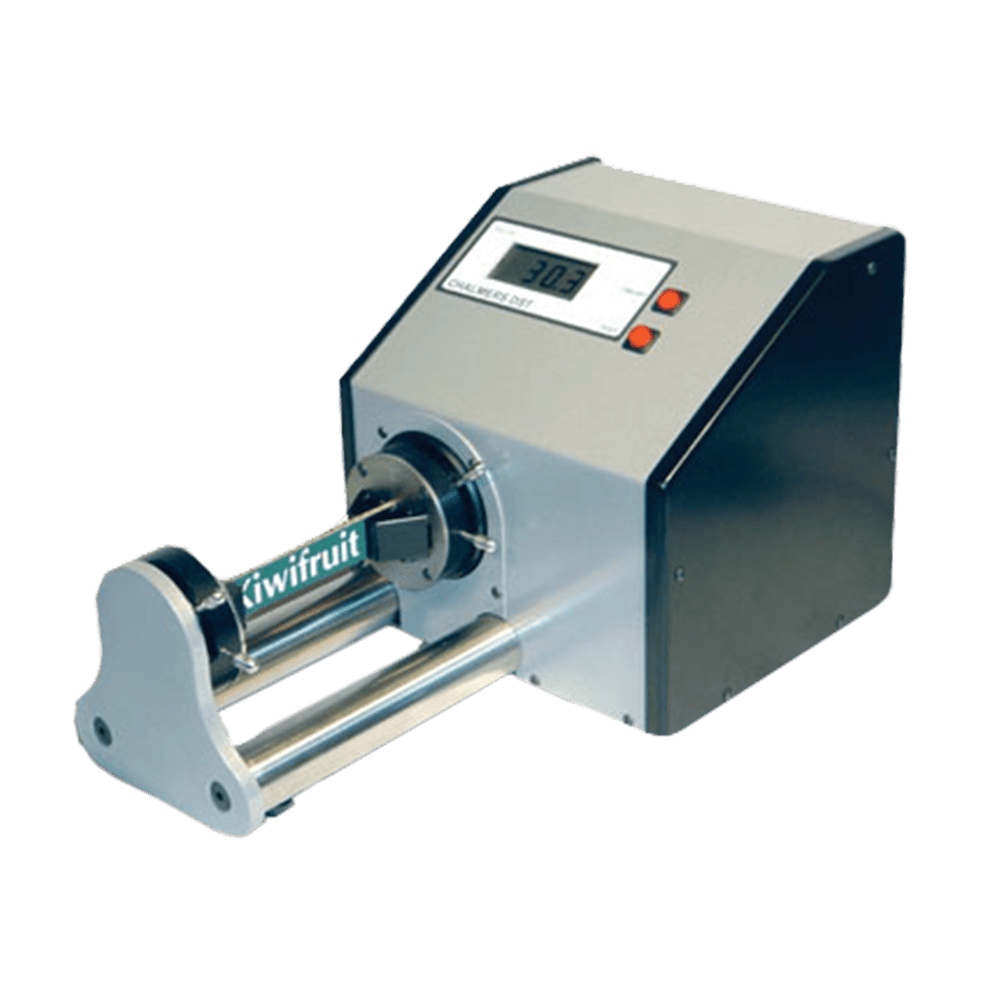

DST MD Torsional Stiffness Tester
