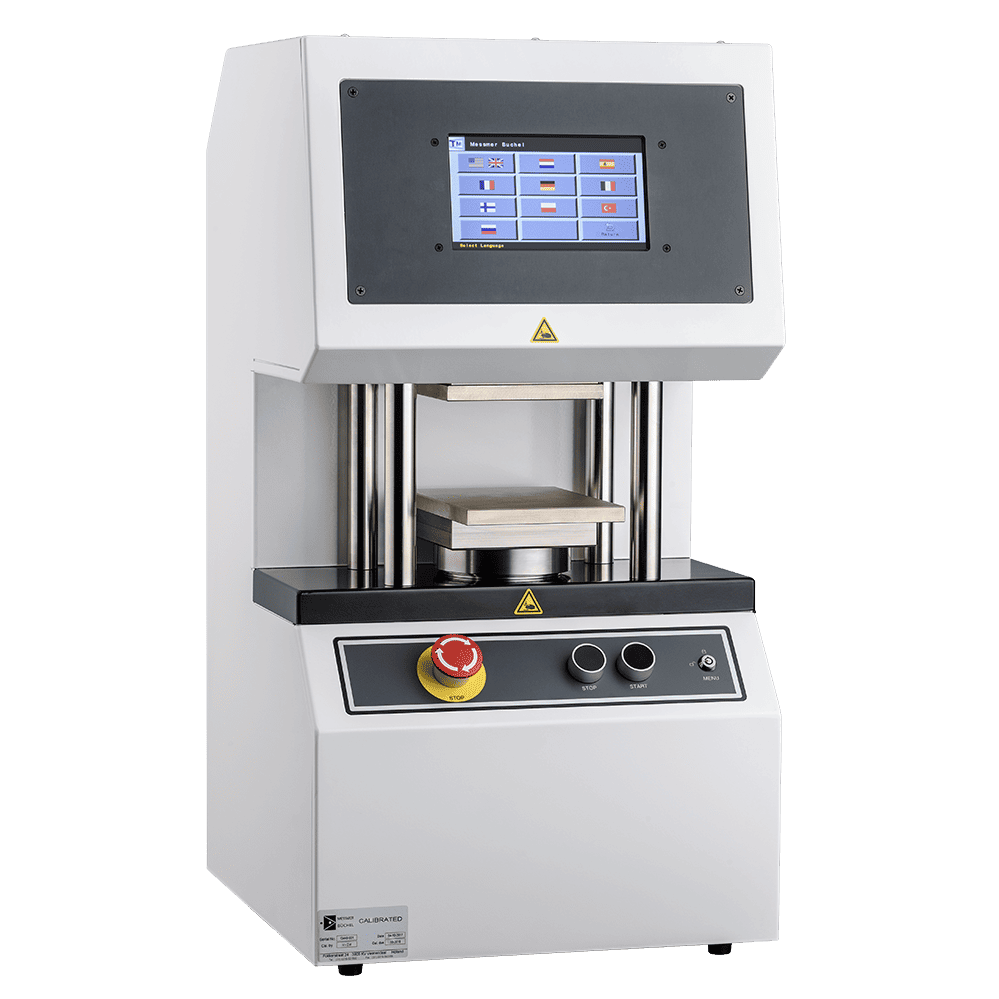

17-56 Crush Tester
The Crush Test is designed as a robust, easy to-use instrument and is suitable for a wide variety of samples, including corrugated board, tubes, paper and plastics.
Description
The Crush Test is designed as a robust, easy to-use instrument and is suitable for a wide variety of samples, including corrugated board, tubes, paper and plastics. The special sample holders extend the instrument’s possibilities. The accuracy is achieved with a precision load cell, which is even accurate at low force values.
After each test the results are displayed on screen. Along with the results, a test curve and statistics are also shown. The software allows the operator to develop individual test methods for easy operation. Changing measuring units is easy and allows the crush tester to conform to a variety of testing standards. The data is easily exported to a computer, especially when using the GraphMaster™ software.
Features & Benefits
Features
- Solid and robust instrument
- Ergonomic design
- Precision load cell
- Load cell up to 5000 Newton
- Special sample holders available
- Easy to use interface
- Suitable for: RCT, CMT, CCT, PAT, ECT, FCT, SQT test
Technical Specifications
Specifications
Model: 17-56 Series
Measuring units: N, lb, N/m, lb/in, kPa, lb/ft, lb/in², kN/m
Measuring range:0,000 – 5,000 N (1,125 lb)
Stroke length: 4 – 78mm (0.158 -3.07 in)
Test speed: 5-50 mm/min (0.2 – 2.00 in/min)
Return speed: ± 100 mm/min (4.00 in/min)
Upper platen: 125 x 125mm (4.92 x 4.92 in)
Lower platen: 180 x 125mm (7.08 x 4.92 in)
Accuracy: 1% of reading
Overload protection: Adjustable, max 5000N
Language: 7 different
Electrical: 100 – 230 VAC, 50/60 Hz
Dimensions: 370 x 400 x 710 mm (WxDxH) (14.5 x 15.7 x 28 in)
Weight: 69 kg (152 lbs)
Properties
Compressive Strength
Standards
Standards (by test method)
- RCT test: APPITA/AS 1301.407s, DIN 53134, ISO 12192, SCAN P34, TAPPI T 822
- CMT test: APPITA/AS 1301.434s, ISO 7263, DIN 53134, SCAN P27, TAPPI T809
- CCT test: SCAN P42, TAPPI T 843
- PAT test: APPITA/AS 1301.430s, TAPPI T 821, FEFCO No. 11
- ECT test: APPITA/AS 1301.444s, ISO 3037, ISO 13821, DIN 53149, SCAN P33, TAPPI T 811, TAPPI T 823, TAPPI T 838, TAPPI T 839, FEFCO No. 8
- FCT test: PPITA/AS 1301.429s, EN 23035, ISO 3035, SCAN P32, TAPPI T 825, FEFCO No. 6
- ASQT test: TAPPI T 829
Accessories
Optional accessories
- 22-22Sample cutter
- 22-76Sample cutter
- Sample holders for RCT, CCT, ECT and SQT
Applications
Applications
Corrugated Testing, Package Testing, Plastic Testing
Industries
Corrugated and Board, Other, Packaging
