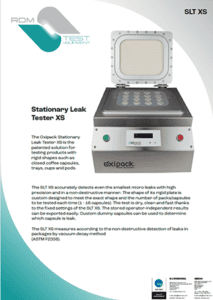

Stationary Leak Tester XS (SLT XS)
This patented leak tester is designed for rigid packages like coffee capsules and trays, offering precise, non-destructive detection of the smallest leaks.
Description
The Oxipack Stationary Leak Tester XS is an innovative solution tailored for testing rigidly shaped products such as closed coffee capsules, trays, cups, and pods. It excels in detecting the smallest micro leaks non-destructively and with high accuracy. The SLT XS’s unique design includes a rigid plate custom-molded to fit the specific shape and quantity of the items being tested, allowing for precise and efficient testing.
Operationally, the Stationary Leak Tester XS stands out for its speed and cleanliness, offering a dry and rapid testing process with fixed settings. Its capability to store operator-independent results and easy export options enhances its utility. Conforming to ASTM F2338 standards, this machine is a standout for its non-destructive testing approach, ensuring both accuracy and ease of use in quality control.
For a larger test block size take a look at the Stationary Leak Tester M (SLT M).
Features & Benefits
- Features:
- Non-destructive vacuum decay method (ASTM F2338).
- Customizable for various packaging types (rigid and flexible).
- Can test multiple packs simultaneously.
- Operator-independent results.
- Integrated vacuum system and control systems.
- Benefits:
- High precision in detecting micro leaks.
- Adaptable for different sizes and shapes.
- Fast and efficient, suitable for high-volume testing.
- Consistent and reliable results.
- Easy to operate with immediate feedback.
Technical Specifications
Dimensions and Weight: 475 x 425 x 333mm (Ixwxh) 22KG
Materials: Stainless steel, Anodised aluminium, Polycarbonate, Rubber
Power: supply 100 – 230V 50/60HZ
Air supply: 5,5 – 8 bar
Compliance and IP rating: CE IP20
Test block size: 200 x 250 x 425mm (Ixwxh)
Leak detection method: ASTM F2338
Minimum leakage: > 0,9 cm3/min
Maximum testing capacity: 2 trays P/M
Connections: USB/Ethernet export 24VDC logic (free programmable)
Packaging type and size: Rigid Package, MAP, Cup, Tray, Pod
Options: IOT Data, Barcode scanner, Printer, Line Numbers
