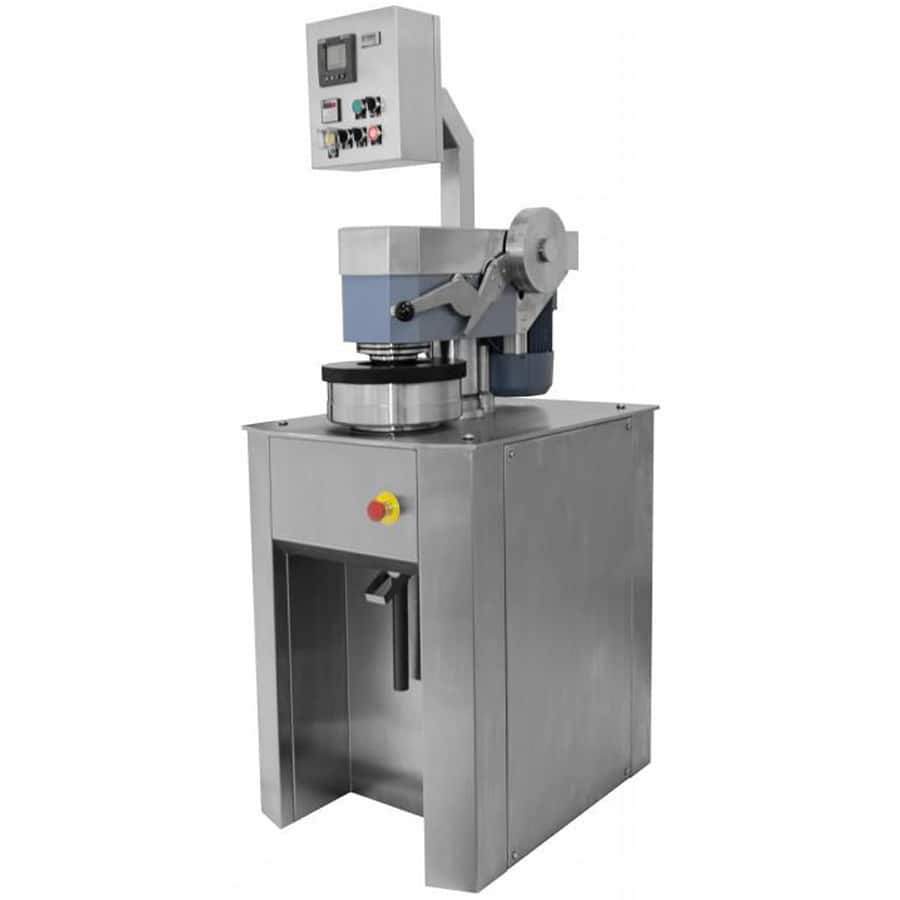

PFI mill | PTB-508Ai

Technical Specifications

General

• Stainless steel roll, beater housing and cylindrical container.
• It can beat between 5-30g of pulp in concentrations of 5-50% (450ml maximum suspension).
• Versatile equipment due to its effectiveness and small pulp volume (30gr).
• Excellent repetitiveness for its use in researches and quality controls.
• Safety features for user and equipment protection (CE mark).
• Rise and lowering of the beating cylinder by automatic and electric manoeuvre.
• Beating pressure through weights.
• Easy handling with revolution number pre-set of the roll and automated process. Pneumatic movement of the head for the loading when the beating ends, the weight is discharged to the rest position and the engines stop automatically while the operators do other tasks simultaneously.
• Time calculation, power absorbed in watts (continuous measurement) and power consumption in kilowatts-hours during the beating process.
• Millimetre screw for the adjustment of the roll in the rectify.
• Drain included for the sample collection after the test.

Power: electricity: Three phase 400V / 50Hz

Compressed air: 6 bars

Weight: 380kg / 525kg packaged

Dimensions (w x l x h): 770 x 600 x 1730 mm / 1050 x 890 x 1950 mm packaged.

Included:

• PFI Laboratory Mill
• Power cable
• Operating manual
• Calibration Certificate using PAPRICAN reference pulp
