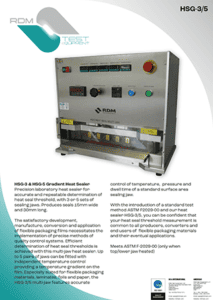

HSG-3 & 5 Gradient Heat Sealer

For rapid determination of heat sealability of flexible packaging. Produces 3 or 5 independently temperature controlled seals, up to 15mm wide x 30mm long.

Precise control of heat sealing process variables (temperature, pressure, and dwell time), enables an optimal balance of material specification, packaging machine speed and seal integrity. Accuracy and repeatability in laboratory heat seal testing is vital, and the HSG Gradient provides precision digital controls for this purpose. Fitted with either 3 or 5 sets of sealing bars with individual temperature controls to create a temperature gradient across the film.

Add to Enquiry

Description

Precision Gradient Heat Sealer heat sealer for accurate and repeatable determination of heat seal threshold, with 3 or 5 sets of sealing jaws. Produces seals 15mm wide and 30mm long.

The satisfactory development, manufacture, conversion and application of flexible packaging films necessitates the implementation of precise methods of quality control systems. Efficient determination of heat seal thresholds is achieved with this multi-jaw Gradient Heat Sealer. Up to 5 pairs of jaws can be fitted with independent temperature control providing a temperature gradient on the film. Especially suited for flexible packaging materials, laminates, foils and paper, the HSG-3/5 multi-jaw features accurate control of temperature, pressure and dwell time of a standard surface area sealing jaw.

With the introduction of a standard test method ASTM F2029-00 and our heat sealer HSG-3/5, you can be confident that your heat seal threshold measurement is common to all producers, converters and end users of flexible packaging materials and their eventual applications.

Meets ASTM F-2029-00 (only when top/lower jaw heated)

For hassle free sample strip cutting see the FSC Freehand Strip Cutter from RDM test Equipment.

Features & Benefits

Features:

  • Precise pressure calibration of standard surface area jaw face
  • Temperature, pressure and dwell time digital controllers
  • Jaws constructed in aluminium and silicon with precision ground faces
  • Range of jaw face surfaces including Matched Crimp and Teflon Coating
  • Auto cycle feature for greater user convenience with multiple samples

Benefits:

  • Choose heat sealing bar configuration, either single (upper) or dual (upper & lower, meets ASTM F2029)
  • User can easily change sealing bar for various surface areas or surface finishes
  • Accurate and repeatable seals due to precision ground sealing faces and jaw guidance system
  • Versatile applications for flexible materials, blister packs and pots
  • Low Maintenance – 12 months between calibrations
HSG Gradient Heat Sealer meets the following standard: ASTM F2029

Technical Specifications

Temperature Control: 0 – 300ºC (0 – 572ºF) 0.1ºC resolution +/- 0.5% +/- 1 digit accuracy. Operating temperature accuracy +/- 2ºC. Resistance Type ‘J’
thermo-couple sensing. Single independent or dual independent control.
Pressure: 0 – 100psi (0 – 6.8 bar, 0 – 689 Kpa) via digital display and transducer.
Pressure control through precision regulator. Repeatability +/-0.02 PSI operation accuracy +/- 5% Supply via factory compressed air line or nitrogen or compressed air bottles min 6 bar (90 psi) max. 7 bar(100 psi). Pressure medium must be clean and dry.
Dwell Time: 0.01 – 99.9 sec. 0.01 sec resolution real time base via quartz crystal +/- 0.01% of range. Operating accuracy +/- 5% (taking into account friction in
piston movement).
Footswitch: Connection port for footswitch operation. Optional footswitch.
Sealing Jaws: Single jaw option: Top heated with silicone rubber (60 shore hardness) 15mm wide x 30mm long. Jaws made from aluminium with machine
ground flat face. Dual jaw option: Top and Lower heated 15mm wide x 30mm long. Jaws made from aluminium with machine ground flat face.
Environment: 5-50°C ambient operating temperature, RH 75% max (non-condensing)

Power: 240V AC 50/60 Hz (110V AC voltage available on request),
Options:
Single (Upper) sealing jaw temperature control or Dual (Upper & Lower) sealing jaw temperature control.
Sealing jaw dimension/profile as required (inc. Matched crimp 120° x 1.8mm pitch).
Teflon Coated Tape or Teflon Coated Jaws.
Footswitch.
PVC Dust Cover.
Cold seal system (temperature circuit removed).
Digital thermometer with s/s band probe to check jaw temperature.
Auto cycle & delay timer.
