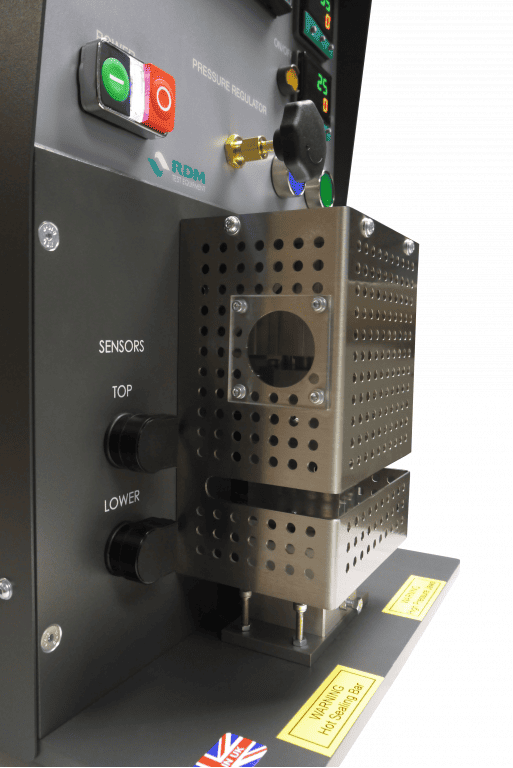

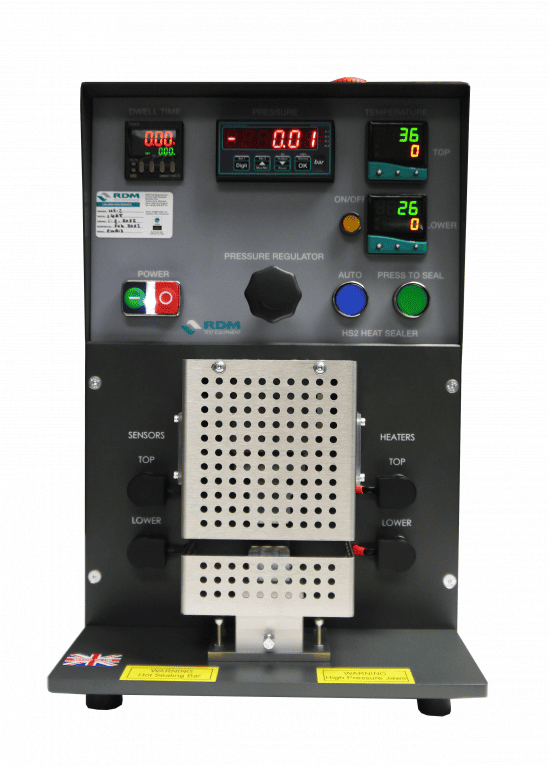

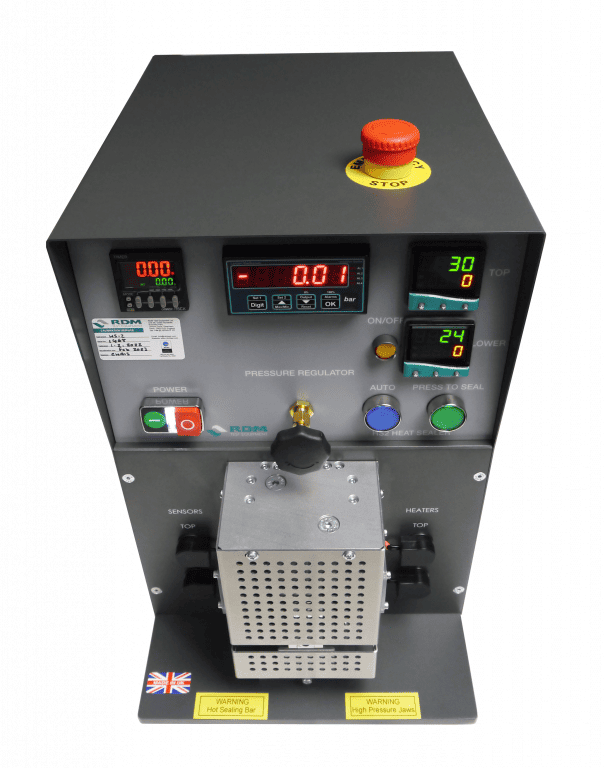

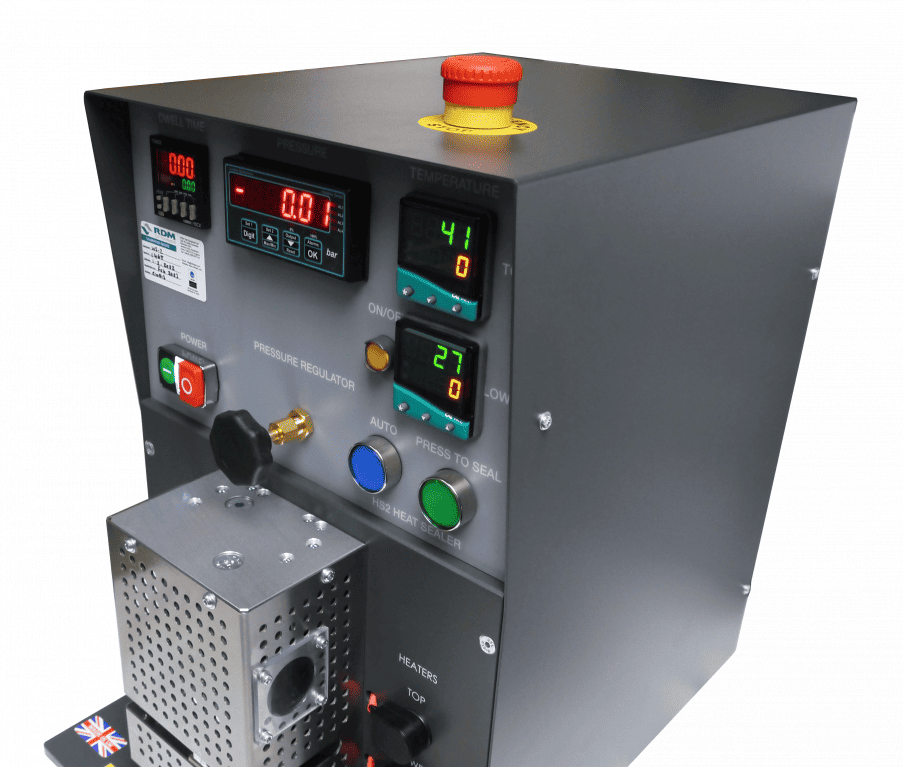

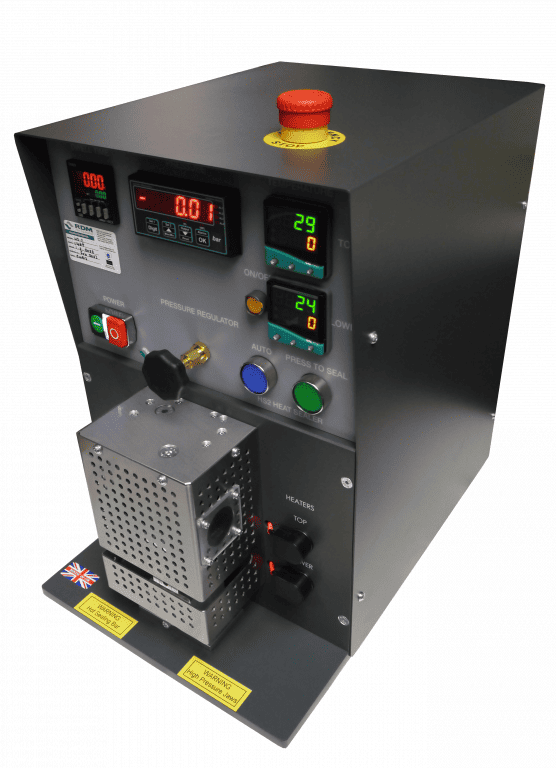

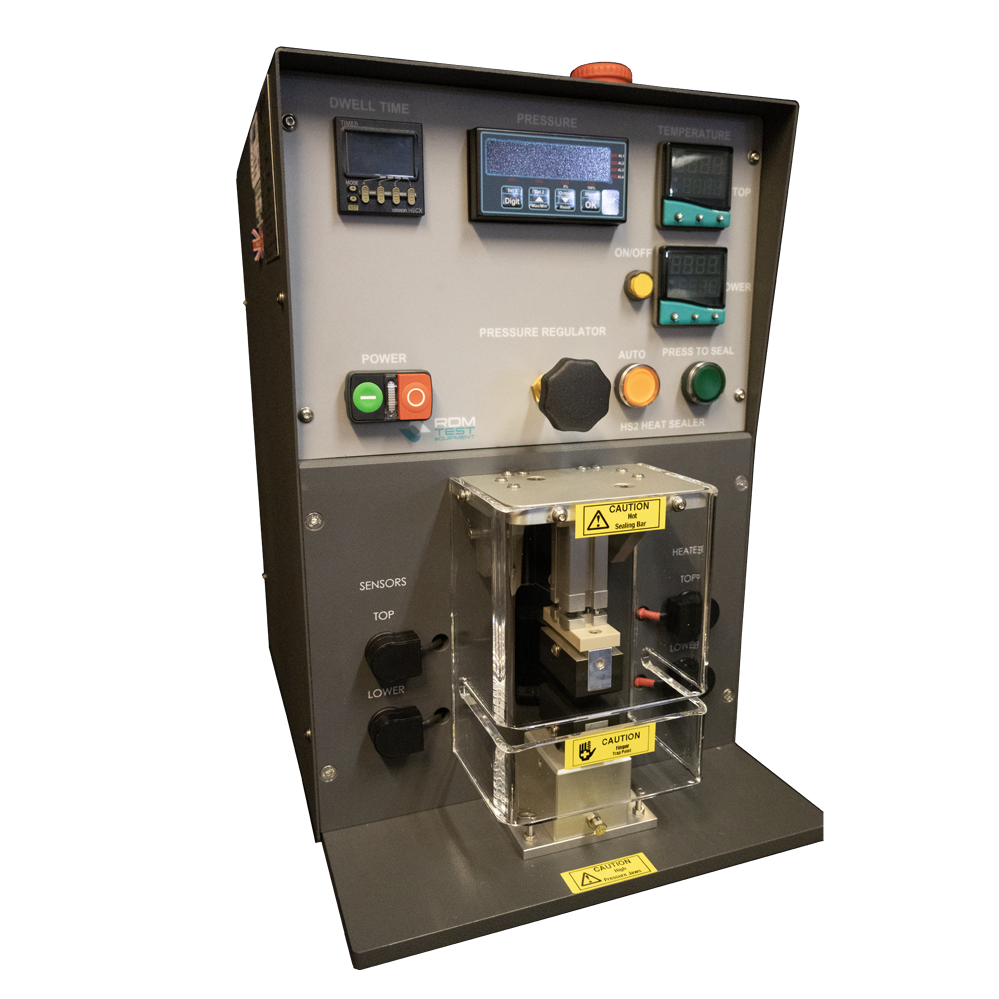

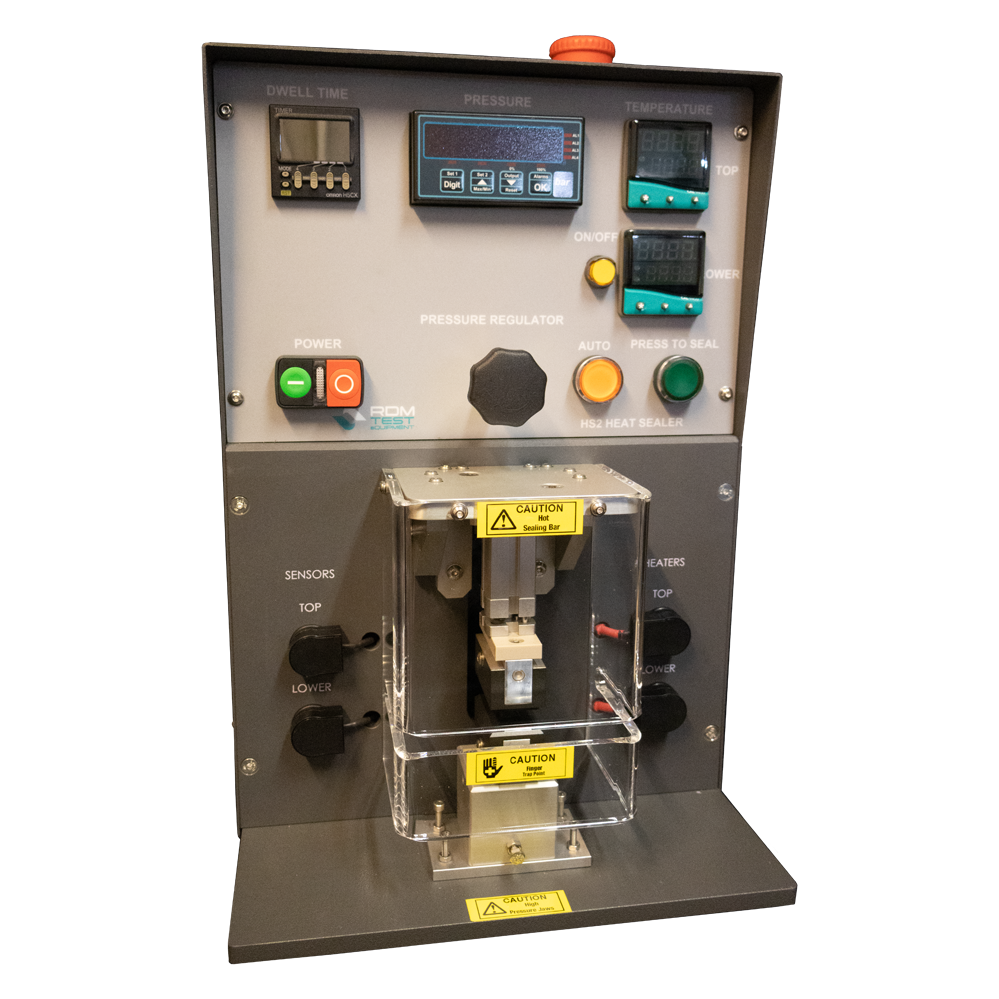

HS-2 Heat Seal Tester
Industry standard Heat Seal Tester. Produces controlled heat seals (ASTM F2029) of heatsealable materials (plastics, papers, compostables) for seal strength measurement (ASTM F88).
HS-2 provides control of Sealing Temperature, Sealing Pressure and Dwell Time. Standard sealing jaws: 25mm x 50mm, precision ground flat faces, easy change slide-on design. Custom sizes and profiles available. HS-2 has been established as the industry standard since 1985.
Description

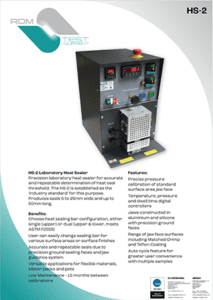

HS-2 Heat Seal Tester
HS-2 is a precision Heat Sealer, ideal for preparation of heat seals for seal strength testing in heatsealable flexible packaging materials (plastics, papers, compostables) to determine optimum sealing parameters of temperature, pressure and dwell time.
This Heat Seal Tester provides precise control of sealing jaw temperature and force/pressure, and the cycle controller enables precise dwell times from 0.1s.
As the world transitions to more recycleable materials, more precise control of heat seal parameters are needed. HS-2 is ideal for QC and R&D use. The data produced helps optimise material specifications, packaging machinery speed and seal integrity.
HS-2 has one set of interchangeable sealing jaws, see model HSG-3 for 3 sets, HSG-5 for 5 sets, and HT-2PC for automatic Heat Seal Testing.
Features & Benefits
Features:
- Precise pressure calibration of standard surface area jaw face
- Temperature, pressure and dwell time digital controllers
- Jaws constructed in aluminum and silicone with precision ground faces
- Range of jaw face surfaces including Matched Crimp and Teflon Coating
- Auto cycle feature for greater user convenience with multiple samples
Benefits:
- Choose heat sealing bar configuration, either single (upper) or dual (upper & lower, meets ASTM F2029)
- User can easily change sealing bar for various surface areas or surface finishes
- Accurate and repeatable seals due to precision ground sealing faces and jaw guidance system
- Versatile applications for flexible materials, blister packs and pots
- Low Maintenance – 12 months between calibrations
HS-2 Laboratory Heat Sealer meets the following standard: ASTM F2029
Technical Specifications
Seal Width: 50 mm max.
Temperature Control: Range Ambient to 300°C, Accuracy: +/- 0.5%, Operating Accuracy: +/-2°C. Single (Upper) sealing jaw temperature control,
or Dual (Upper & Lower) sealing jaw temperature control.
Pressure: Range: 0 to 100psi (6.8bar, 689Kpa), via precision regulator and digital display. Accuracy +/-5%, Repeatability +/- 0.02psi Supply via clean and dry compressed airline or bottled air/nitrogen at 90 to 100psi.
Dwell Time: Range: 0.1 to 99.9 sec., Resolution 0.01 sec.
Auto Cycle & Delay Time: Delay Time Range: 0.1 to 99.9 sec For automatic cycling of sealing bars used in manual production environments. Assists with
correct alignment of sample. Electronic processor controlled.
Jaw Guidance System: Dovetail slide on jaws with quick release mechanism.
Sealing Jaws: Standard flat jaws 25mm x 50mm, constructed in aluminium
with precision ground face. Lower sealing jaw with precision ground silicone rubber face.
Environment: 5-50ºC ambient operating temperature, RH 75% max (non-condensing).
Power: 240V AC 50/60 Hz (110V AC voltage available on request).
Dimensions: W 31 x D 46 x H 50 cm, 24kg.
Options
Single (Upper) sealing jaw temperature control or Dual
(Upper & Lower) sealing jaw temperature control.
Sealing jaw dimension/profile as required (inc. Matched crimp120° x 1.8mm pitch).
Stainless Steel sealing jaws.
Teflon Coated Tape or Teflon Coated Jaws.
Footswitch.
PVC Dust Cover.
Alarm package for temperature High/Low, selectable.
Cold seal system.
Digital thermometer with s/s band probe to check jaw temperature
Accessories
- Single (Upper) sealing jaw temperature control or Dual (Upper & Lower) sealing jaw temperature control.
- Sealing jaw dimension/profile as required (inc. Matched crimp 120° x 1.8mm pitch).
- Stainless Steel sealing jaws.
- Teflon Coated Tape or Teflon Coated Jaws.
- Footswitch.
- PVC Dust Cover.
- Alarm package for temperature High/Low, selectable.
- Cold seal system.
- Digital thermometer with s/s band probe to check jaw temperature.
Resources
Related products
-
View Product
OX-TRAN ® 2/28
The OX-TRAN 2/28 H is designed for laboratories that routinely perform a high quantity of OTR tests on mid to high-level barriers.
The OX-TRAN 2/28 H Oxygen Permeability Tester with its unique 4 cell capability can test four barrier samples at the same time providing twice the throughput of traditional OTR instruments. The new dual film horizontal cartridge is removable for easy sample preparation and the user-friendly operator interface provides real time status of testing against target limits.
-
View Product
HSB-1 Laboratory Heat Sealer
For production of heat seals and/or measurement of heat sealability of flexible packaging. Produces seals up to 300mm long x 5 to 25mm wide.
-
View Product

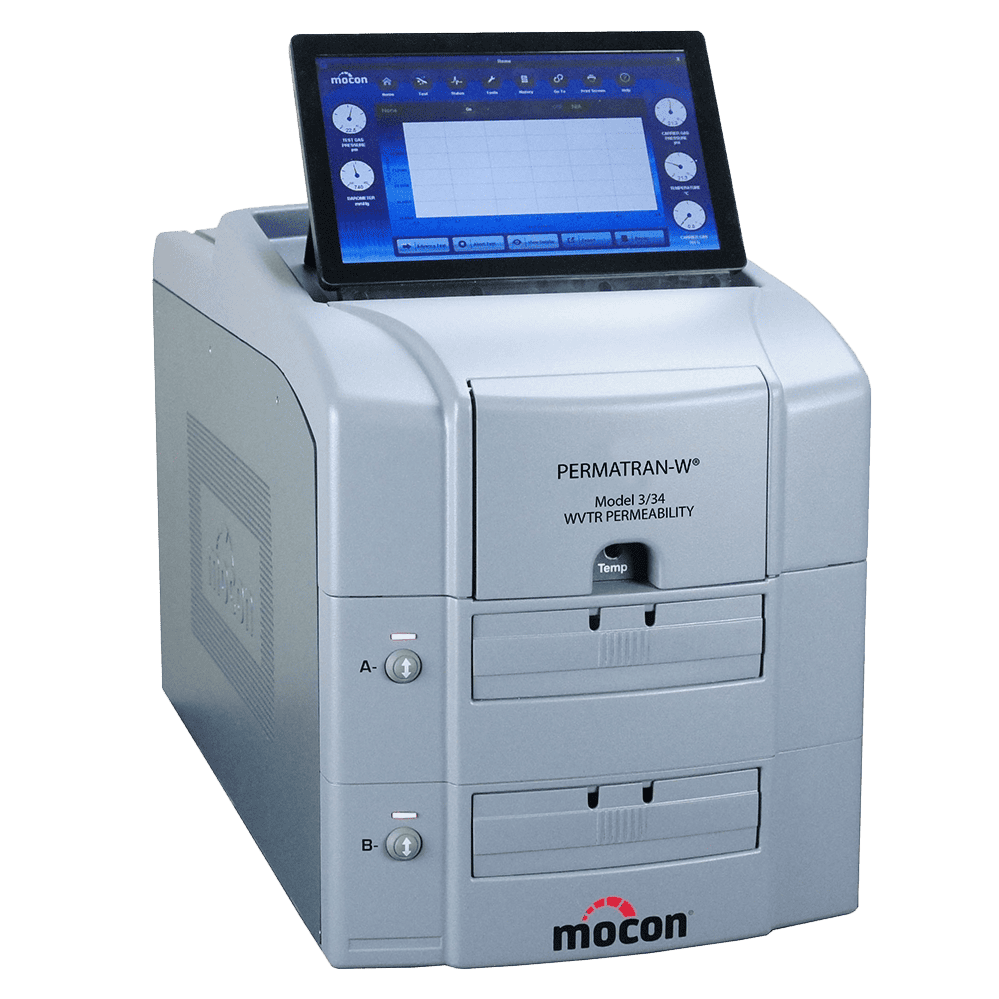

PERMATRAN-W ® 3/34
