Gelbo Flex Tester
Gelbo Flex Tester designed to measure flexible barrier materials for flex durability to ASTM F392. The GF-392 Gelbo Flex Tester is a microprocessor controlled system, with a user controllable pre-set method programmed for ASTM F392. This makes the GF-392 both versatile and very easy to use, with only minimal user training needing.
Description
Test practices are useful for determining the resistance of flexible packaging materials to flex formed pin hole failures, failures in integrity of one or more plies of a multi-ply structure, and breakdown of barrier properties such as gas or moisture transmission rates.

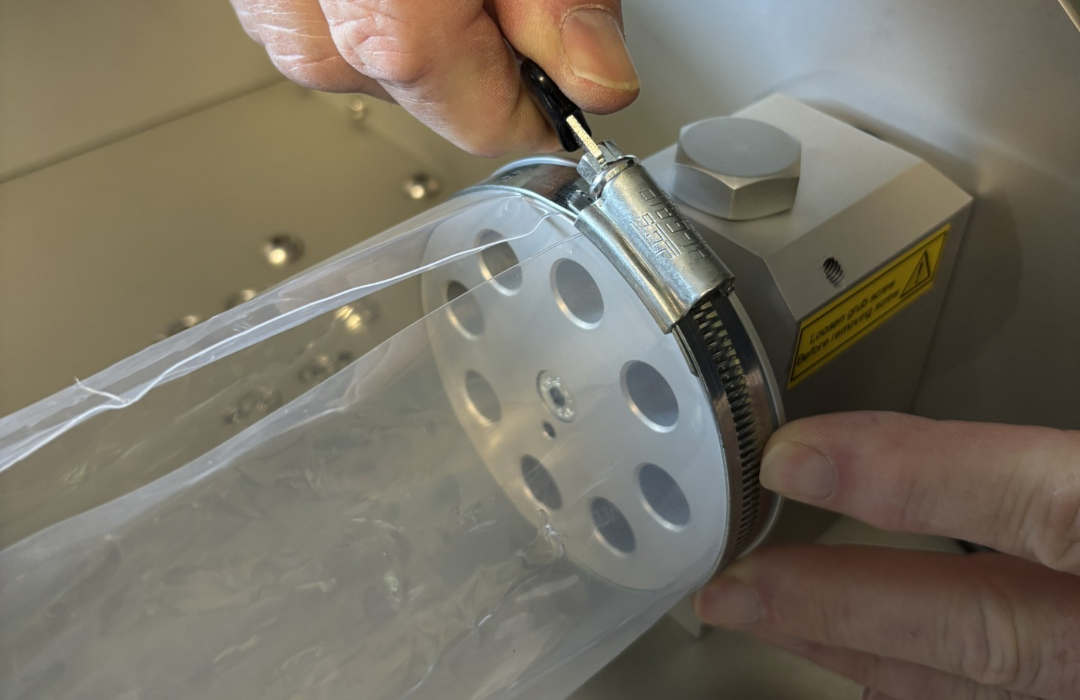

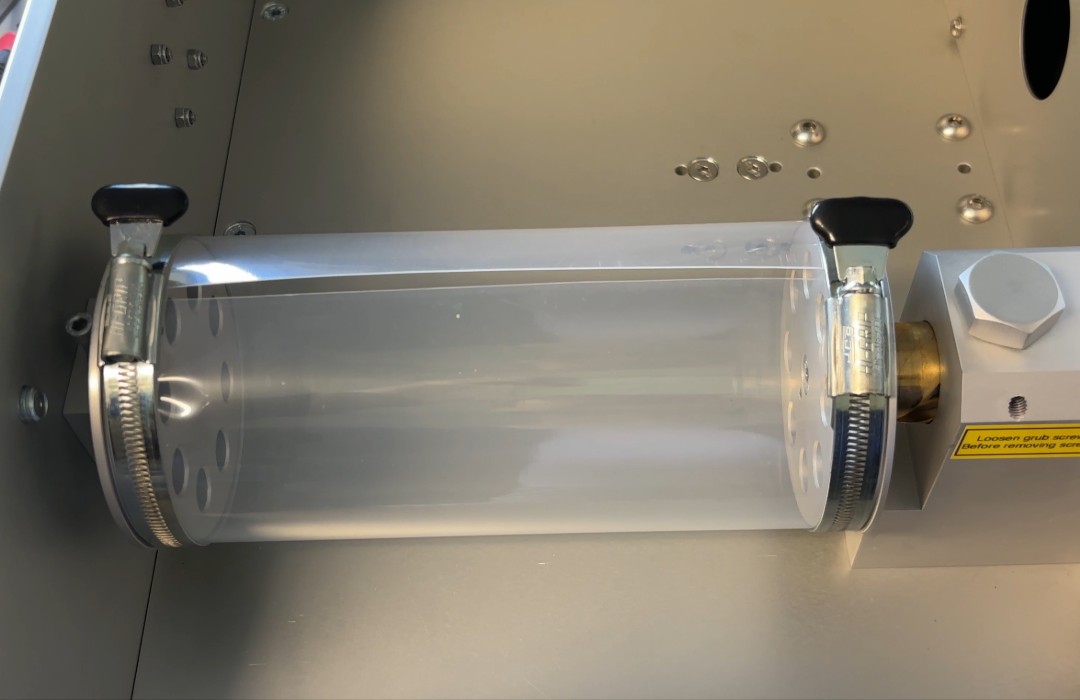

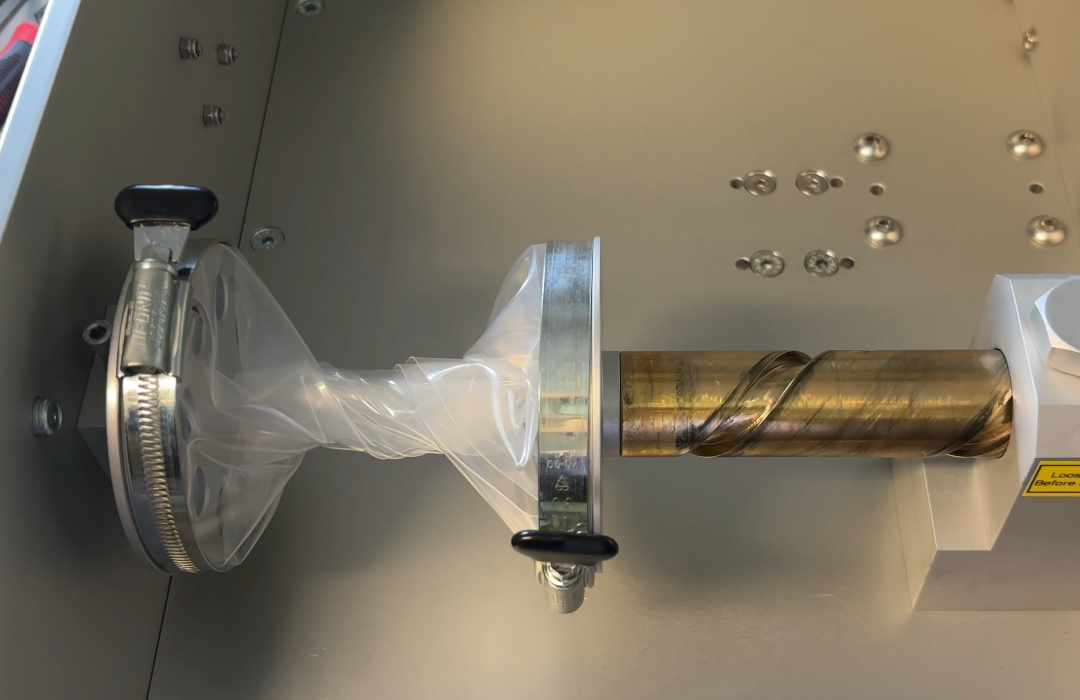

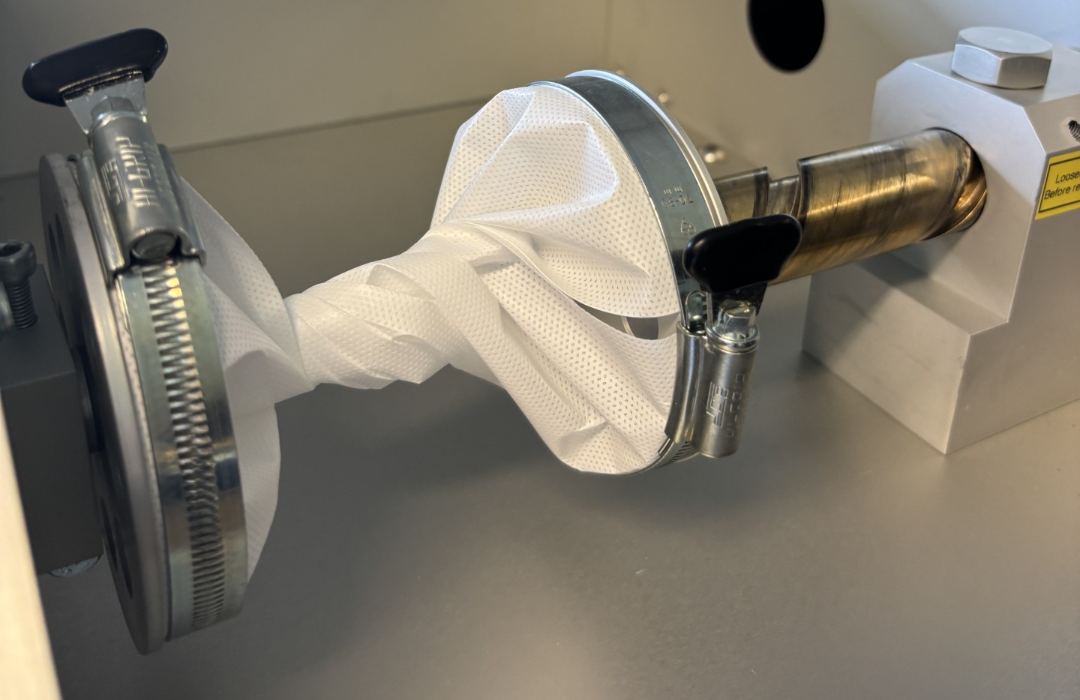

ASTM F392 specifies a variety of conditioning levels, and the Gelbo Flex Tester can be programmed to comply with each method. The sample (200mm x 280mm) is attached to the instrument mandrels with two clamps. The instrument then provides a twisting action combined with a horizontal oscillation and the number of cycles are counted.
RDM Test Equipment have set the standard in precision and reliability for over 30 years. Please Contact Us and we’ll work with you to understand your requirements and provide a solution
Video
Features & Benefits
Features:
- Rate of cycles: 45 / min
- Standards: ASTM F392 conditioning levels A-E
- Stroke Distance: 80 or 155 mm
- Microprocessor & LCD display
- Twisting Angle: 400 deg and 440 deg
- Power: 110 or 230 Vac, 50 Hz, 700VA
- Home position for easy machine set-up
- Dimensions: 34(H) x 57(W) x 44(D)
- Model: GF-392
- Weight: Approx. 35 kg unpacked
GF-392 Gelbo Flex Tester meets the following standard, click on the link to purchase the standard ASTM F392
