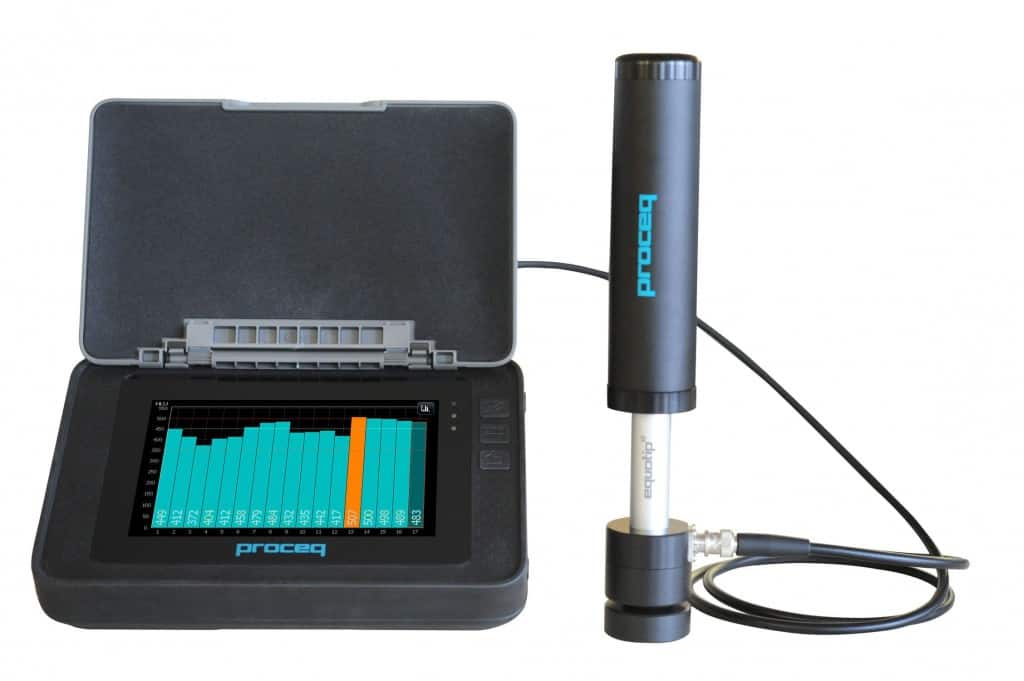

Equotip 550 Leeb U Roll Hardness Tester
Perfectly suited for large rolls, thin foils and films

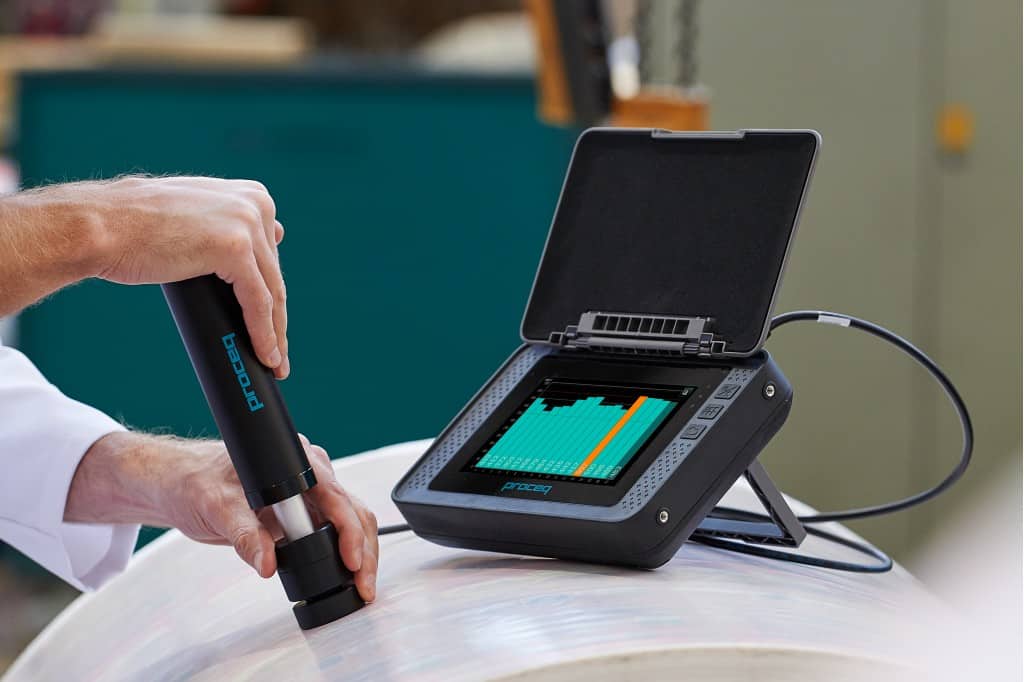

The Equotip 550 Leeb U enables the user to quickly and precisely diagnose roll imperfections, hardness inconsistences and uneven winding, thereby preventing problems for printing and converting operations. Portable and lightweight, the Equotip 550 Leeb U is perfect for roll hardness testing in the warehouse or on the production floor, providing an immediate visual assessment of the hardness profile.
Description
Test Method
Principle: Measurement of the impact body’s velocity propelled by spring force against the surface of the test piece
Native Scale: HLU
Impact Energy: 200 Nmm
Measuring Time: Less than 1 sec
Angle Independent: Manually select: ↓↘→
Endurance: Extremely durable
Features & Benefits
Display and User Interface
- Display: Colour touchscreen
- Memory (no. of values): > 1,000,000
- Multiple Languages: 11 languages and time zone supported
- Profile View: Sophisticated digital
- Verification wizard
- Adjustable tolerance limits
Reporting
- Roll Numbering – Keyboard or external barcode reader
- PC-software included
- Custom Reports
Technical Specifications
Specifications
- Display: 7” colour display 800 x 480 pixels
- Memory Internal: 8 GB flash memory
- Regional Settings: Metric and imperial units, multi-language and time zone supported
- Power Input: 12V +/- 25% / 1.5A
- Dimensions: Display Unit: 250 x 162 x 62mm (9.84 x 6.4 x 2.44”) Impact Device: Ø 45 x 295mm (Ø 1.77 x 11.61”)
- Weight: 2,500g (5.51lbs)
- Battery: Lithium Polymer, 3.6V, 14.0 Ah
- Battery Lifetime: > 8h (in standard operating mode)
- Operating Temperature: -10 to 50°C (14 to 122°F) (Non-charging)
- IP Classification: IP 54
- Certification: CE
Applications
Applications
Large Paper Rolls, Midsize Paper Rolls, Small Paper Rolls, Thin Film Rolls, Foil Rolls, Coated Rolls
Resources
Related products
-
View Product
Luna LAB Analytical Balances
Luna analytical balances accommodate basic to complex applications. Luna’s stylish LCD features large, 24mm digits on a black background. Multilingual text capability makes Luna ideal for users in various regions.
-
View Product
FD-1709 Falling Dart Impact Tester
The FD-1709 Falling Dart Impact Tester determines the impact resistance of plastic film using a free-falling dart.
The Falling Dart Impact Tester performs to recognised International Test Standards including ASTM D1709, and ISO 7765.
-
View Product
84-56 Horizontal Tensile Tester
Tensile testing is the most widely used method for indicating the serviceability of many materials including Paper, Board, Tissue Paper and Non-wovens.
The model 84-56 Horizontal Tensile Tester combines a modern contemporary look with a robust mechanical design and new improved electronics including a colour touch screen and user-friendly interface. The menus are interactive and the large buttons are designed for easy access.
-
View Product

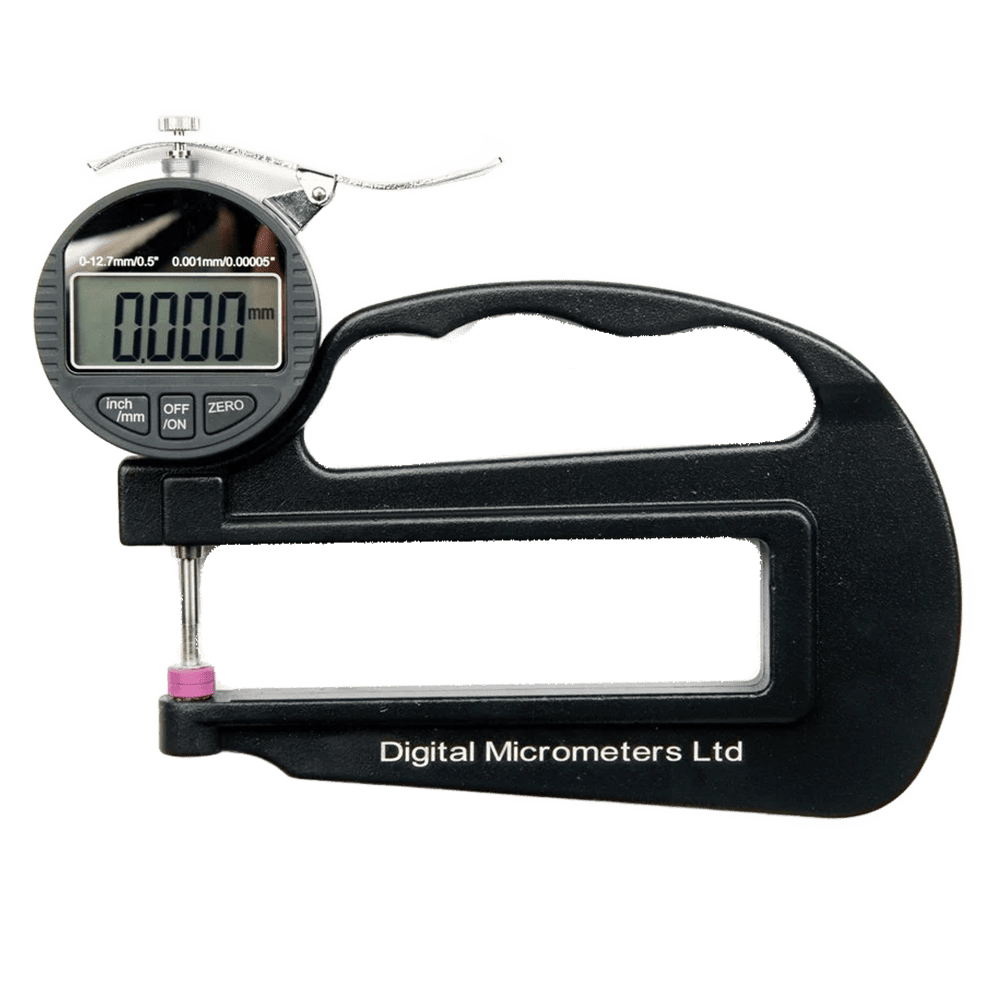

DML3032 Digital Thickness Gauge
