79-15 Crease and Board Stiffness tester
Crease and Board Stiffness testing is useful to industries of corrugated, carton board, paper, printing and packaging.
Description
Crease and Board Stiffness testing is useful to industries of corrugated, carton board, paper, printing and packaging. The relationship between
board stiffness and crease recovery (spring back) is an important factor in the performance of cartons on high speed packaging machines and
in manual folding. It is crucial to have the creases in boards correct and uniform. The crease recovery (spring back) can result in forces, which
distort the carton or cause stresses to be applied to closures, which reduce their effectiveness.
Other products in the Stiffness testing range include the 79-56 Bending Resistance Tester for the the bending resistance of paper, paperboard, plastic film, medical tubing, and wire.
Features & Benefits
Features
- Easy to use, dual purpose instrument
- Determines both board and crease stiffness in the range of 0-399 gf (0 to 3.91 N)
- Digital display of measured force in grams
- Stiffness Bending 15°
- Bending Angle 90°
- RS232 Output
- Test time 15 seconds
- Accuracy ±2% of reading
- Durable construction
- Dual function sample cutter prepares precision samples for bending stiffness and crease spring back tests.
- Sample cutter for left and right hand operation and calibration check weight included
- Model 79-15 comes supplied with two interchangeable (crease recovery) sample jaw assemblies. One crease recovery jaw assembly tests (90 degree fold) and the other, when fitted to the machine, tests round corner packaging materials in accordance with Philip Morris method PMI 068.
Technical Specifications
Specifications
- Range: 0-399 gf (0 to 3.91 N)
Standards
- BS 6965-1
- BS 3748
- PMI 068
- BS ISO 2493-1
- TAPPI T 556 (15 degrees only)
- Scan P29
Cutter Size
| Depth: | 11 in. (280mm) | ||
| Height: | 7.7 in. (195mm) | ||
| Width: | 5.3 in. (135mm) | ||
| Weight | 10 lbs (4.5 kg) |
Instrument Size
| Depth: | 10.6 in.(270mm) | ||
| Height: | 8.3 in. (210mm) | ||
| Width: | 8.1 in. (205mm) | ||
| Weight | 14 lbs (16.5kg) |
Accessories
Board stiffness testing choices
There are a range of devices and accessories to measure the bending stiffness of paper and paperboard. Please contact us for further information
Applications
Applications
corrugated, carton board, paper, printing and packaging.
Resources
Related products
-
View Product
HSM-4 Laboratory Heat Sealer
For standard determination of heat sealability. Produces seals up to 50mm long x 5 to 25mm wide.
Precise control of heat sealing process variables (temperature, pressure, and dwell time), enables an optimal balance of material specification, packaging machine speed and seal integrity. Accuracy and repeatability in laboratory heat seal testing is vital, and the HSM-4 provides a standard range of controls for this purpose.
-
View Product
HSP-1 Tray Sealer
For lab scale / prototype production of repeatable high quality heat seals in pot / tray lidding film applications, up to 150mm diameter.
-
View Product

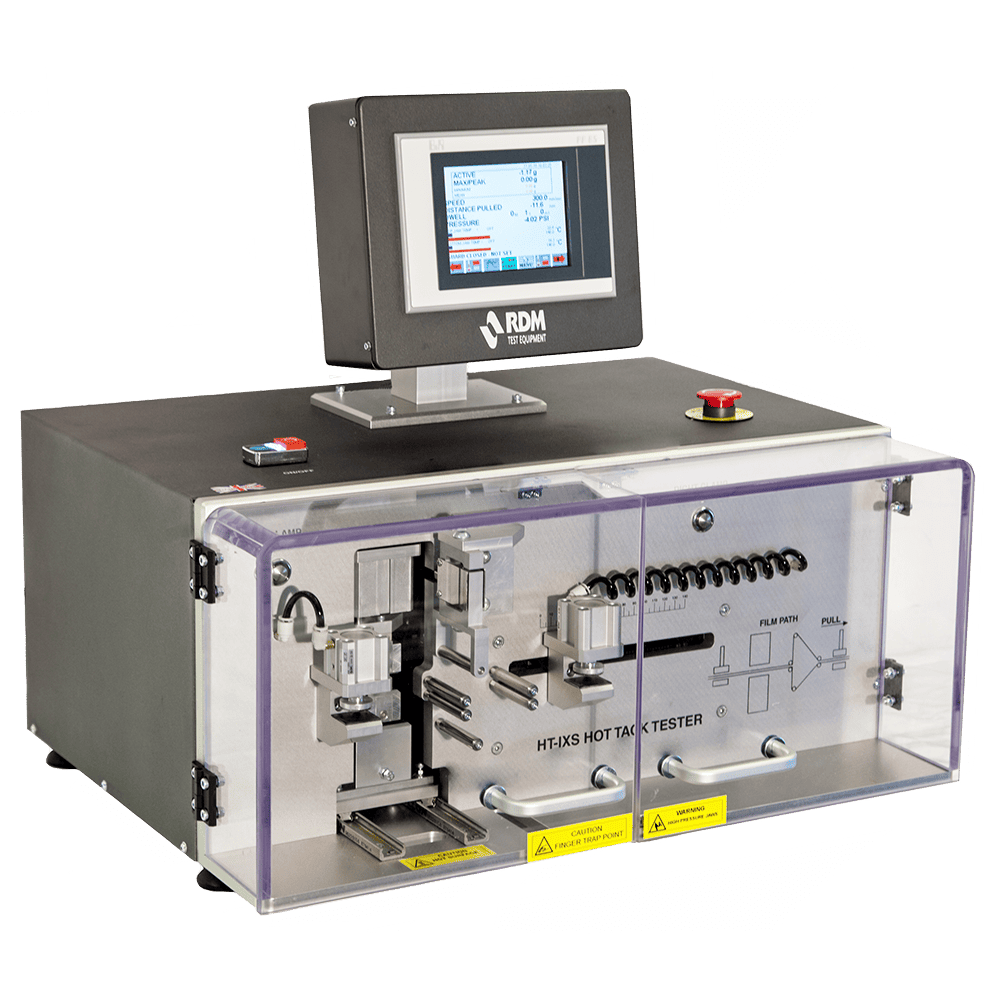

HT-1XS Hot Tack Tester
