noviprofibre bauer mcnett classifier 070314

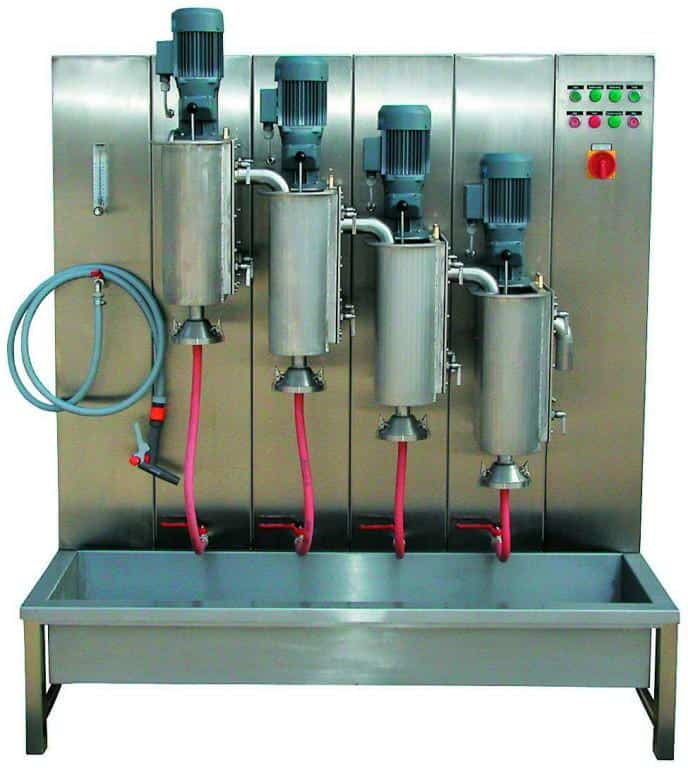

Bauer McNett fibers classifier | 070314

Name: Bauer McNett fibers classifier | 070314
SKU: 5157
Availability: InStock

For the determination of the pulp fibre length by classification method.

Categories: Noviprofibre, Pulp

Description

For measure the weighted average fibre length of a pulp using the classification method. Fractionators with 4 tanks with different sieves and integrated vacuum pump.

Compliant with standards TAPPI T233, SCAN M6, PAPTAC C5

Features & Benefits

Features:

Control screen with automated cycles.
Easy and quick replacement of the grids.
Stainless steel models with 3, 4 or 5 fractioning stations.
Robust modular frame made of stainless steel with modular sorting units.
Each sorting station is equipped with its drive motor.
Built-in flowmeter.
Vacuum pump included in the standard supply.
Classification stations with quick opening system.
Screening mesh for 3, 4 or 5 sorting stations (ASTM 16, 30, 50, 100 and 200 Mesh)

Technical Specifications

General

Sturdy frame complete made of stainless steel on which are mounted 4 tanks with built-on motors.
Integrated control box with fully automated test cycle
Automatic start-stop with switch for adjusting the sequence time
Quick clamping device for easy mounting the sieves
Built-in vacuum pump for sucking out the water of the tanks after fractionating
Holders for the filter papers with quick clamping
Compliant with standards TAPPI T233, SCAN M6, PAPTAC C5

Power: electricity: 110-230V / 50 – 60Hz

Water: 200

Included:
